Three scans.
One probe.

A wireless, dual-headed diagnostic ultrasound system. Linear, convex and cardiac scanning in a single handheld probe.

Request a demoTech specs

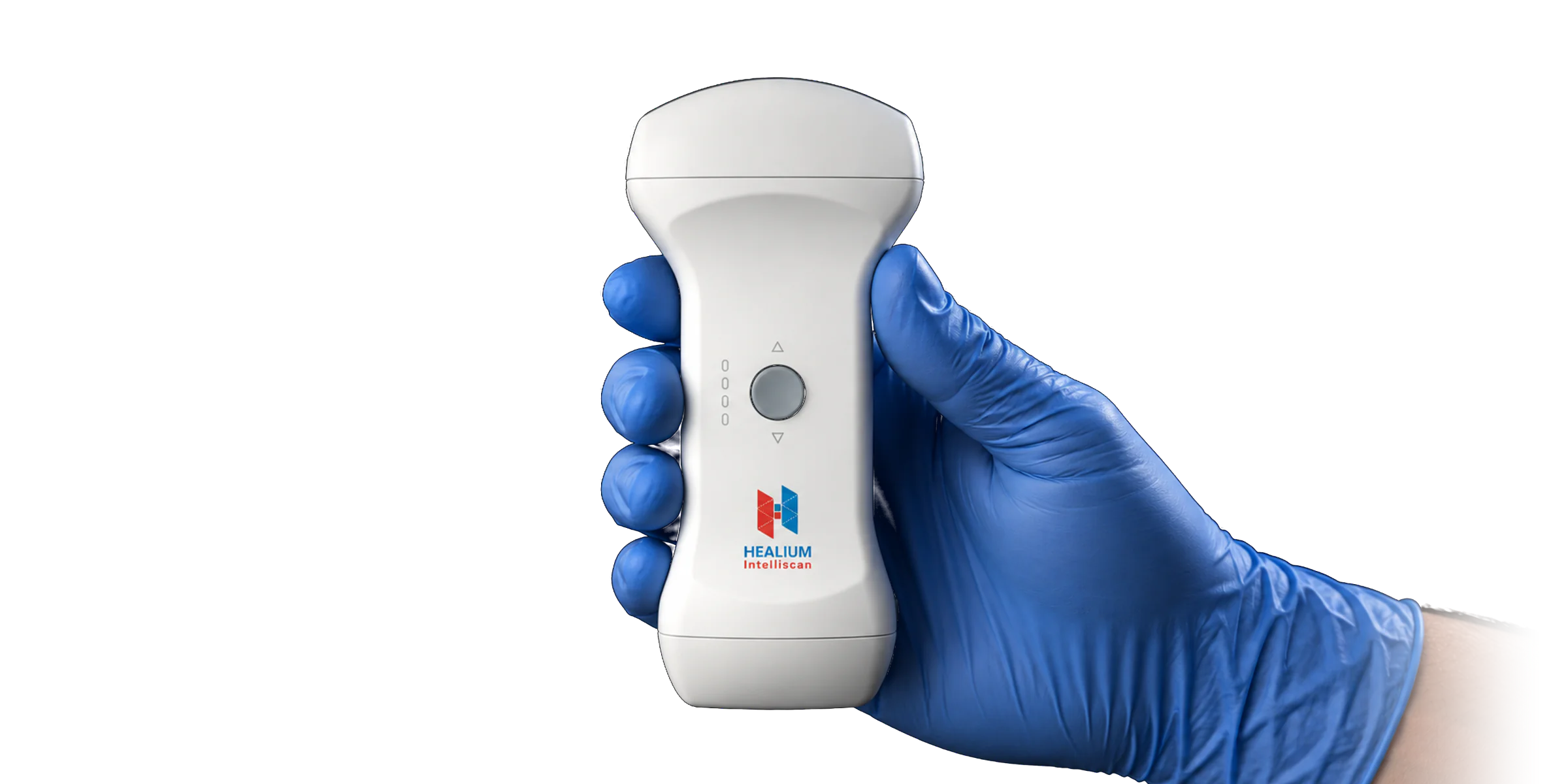

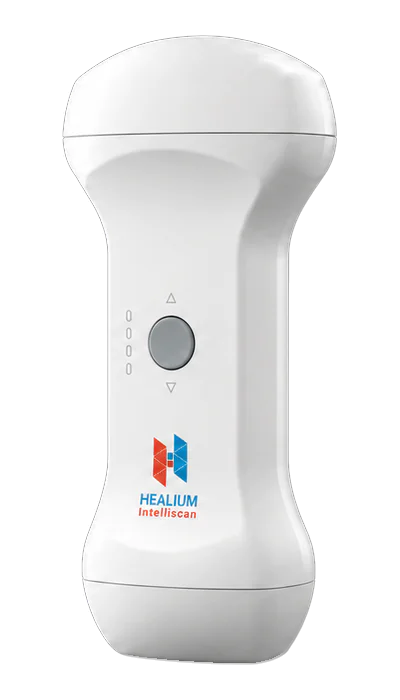

Healium Intelliscan probe held in hand

At a glance

2

Arrays in one probe

11

Cleared clinical applications

3

Scan types — Linear · Convex · Cardiac

5

Imaging modes, incl. Doppler

FDA

510(k) cleared

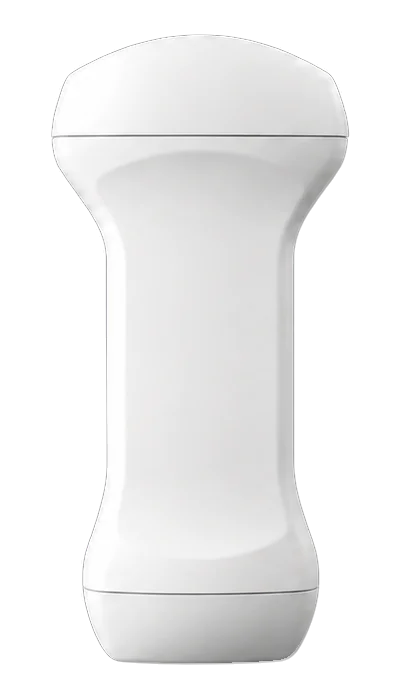

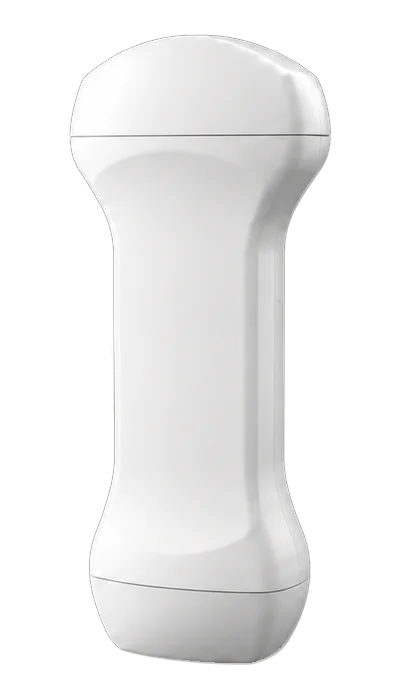

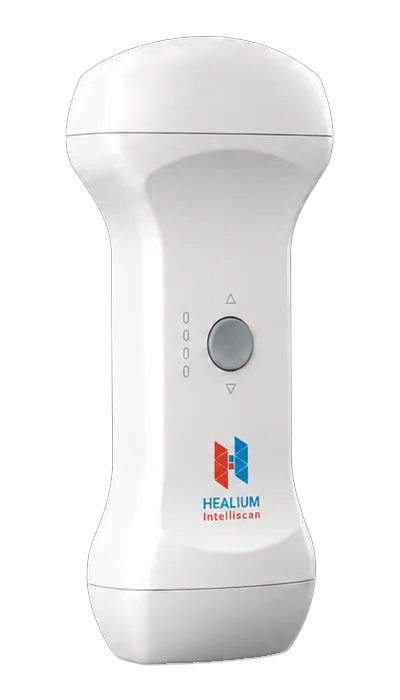

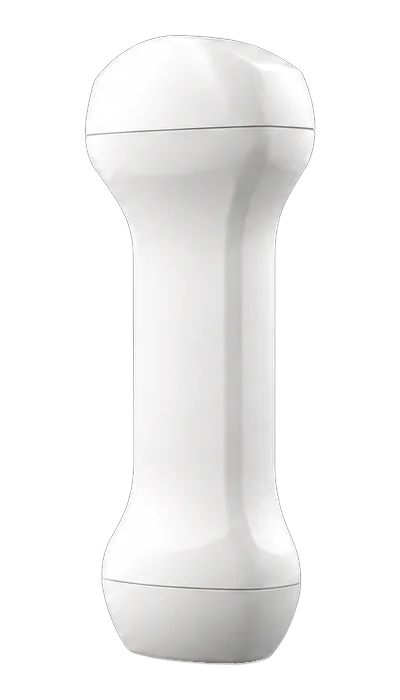

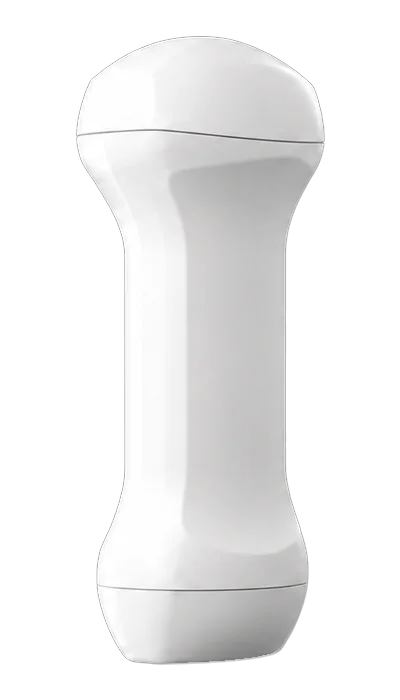

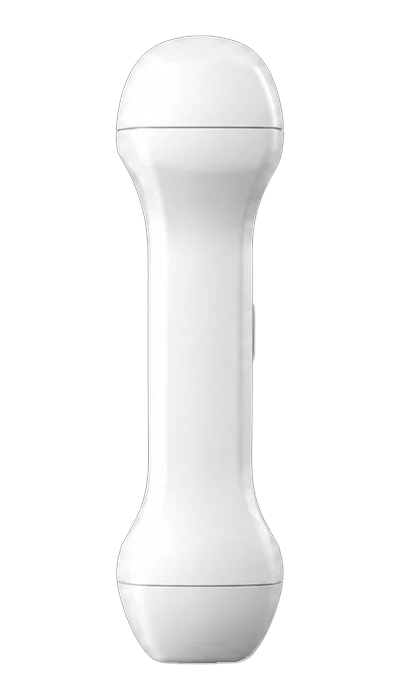

Every angle.

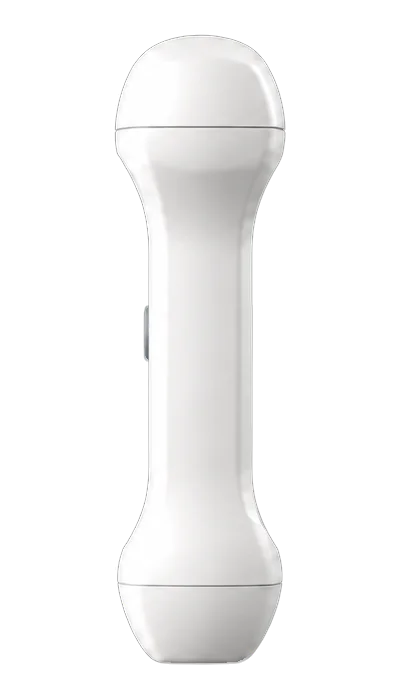

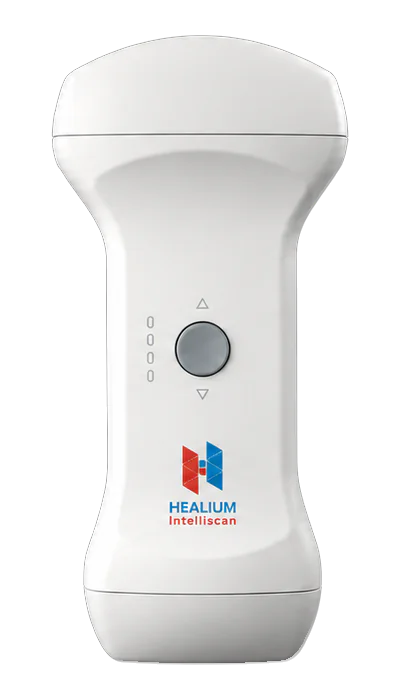

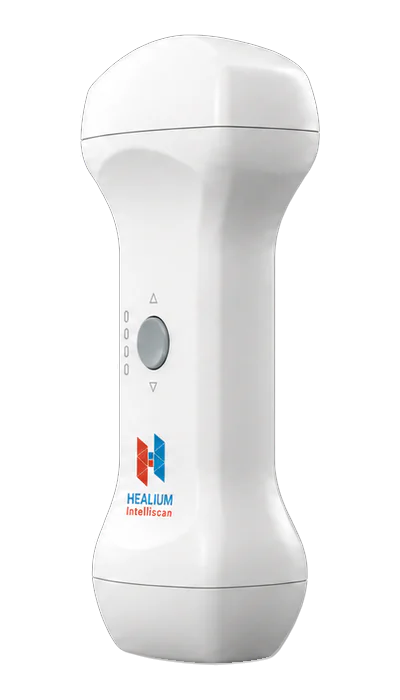

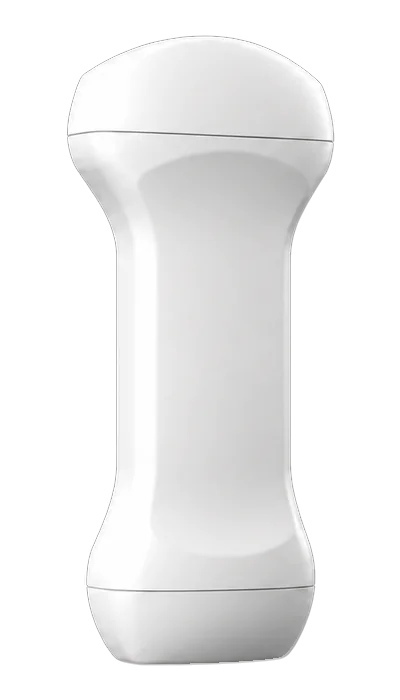

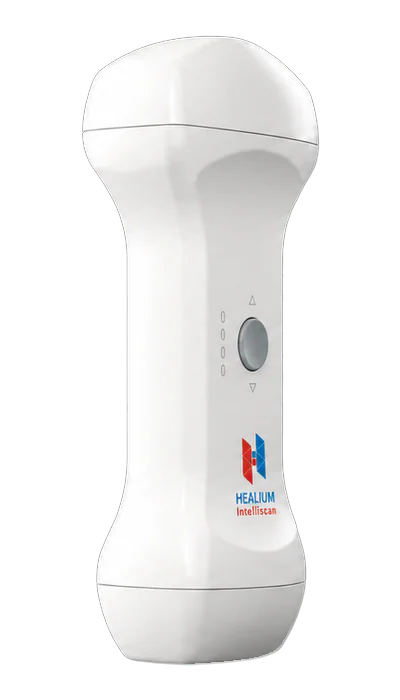

Drag to turn it. Two arrays, one handheld body, no cable.

Two arrays, three scan types.

A convex array for deep views and a linear array for detail — with a dedicated cardiac preset on the linear array. Turn the probe, not the room.

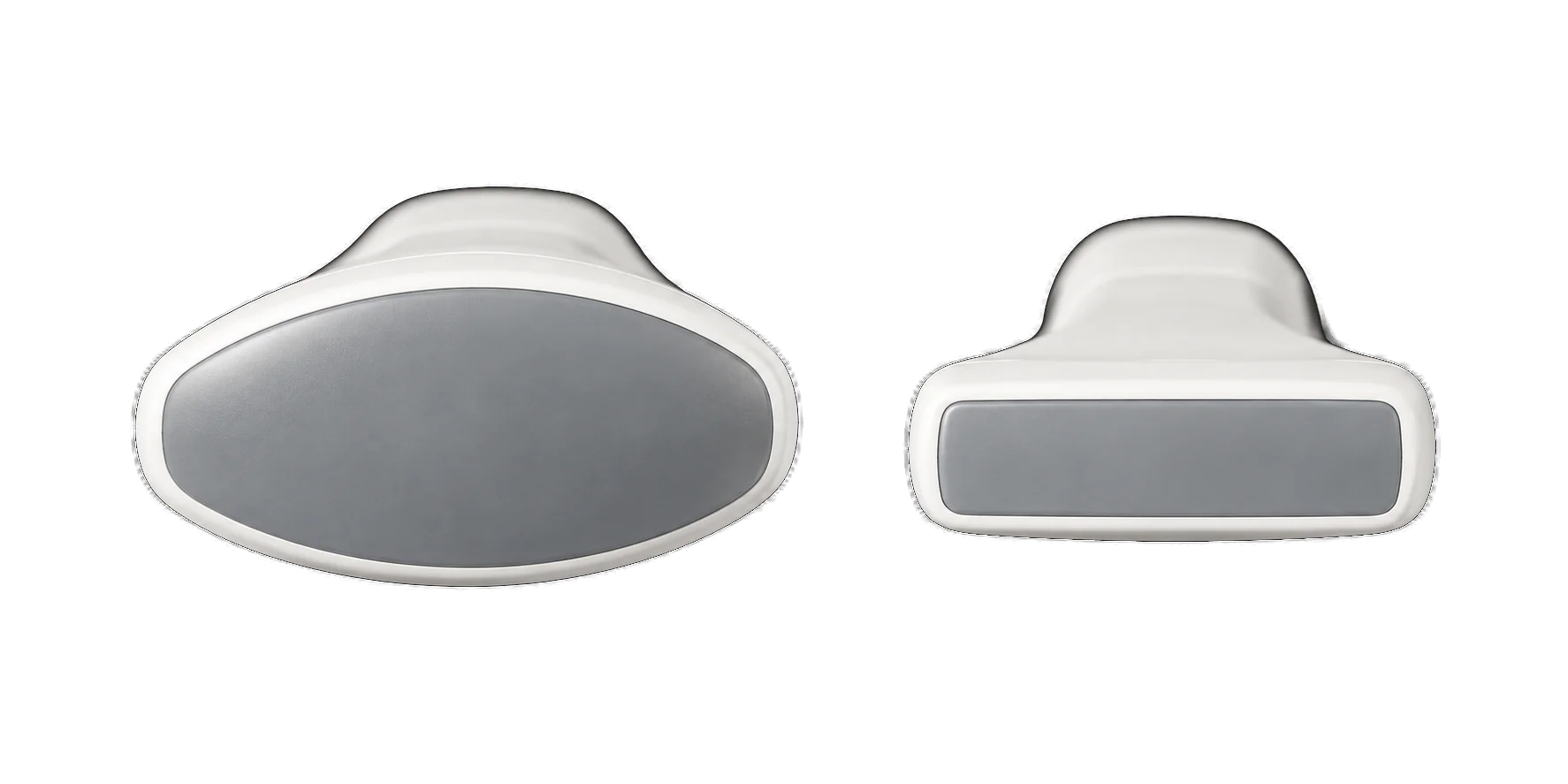

Healium Intelliscan transducer heads, end-on: convex and linear arrays
Convex array
Obstetric B-mode frame from the convex arrayCardiac B-mode frame from the linear arrayObstetricB-modeDevice output

Deep views, wide field.

A curved array for abdominal, obstetric and gynaecologic imaging — the exam that most often happens away from the imaging department.

Obstetric · Gynaecologic · Abdominal · Urology / renal · Paediatric

Eleven clinical applications.

From the ward to the clinic to the teaching room — one probe, cleared for the examinations you do most.

Convex array

Deep views
  • Obstetric
  • Gynaecologic
  • Abdominal
  • Urology / renal
  • Paediatric

Linear array

Detail
  • Cardiac (adult)
  • Small organ · thyroid · breast
  • Musculoskeletal
  • Peripheral vascular
  • Vascular access / needle guidance
  • Lung / thoracic

Clinical applications supported by the system. Intended uses and transducer selection are defined in the Instructions for Use.

Your device is the console.

iOS, Android and Windows. Direct Wi‑Fi to the probe — nothing to plug in.

Healium Intelliscan app — live cardiac scan with controls

Beyond B-mode.

Doppler, measurements and export — on the same screen you scan with.

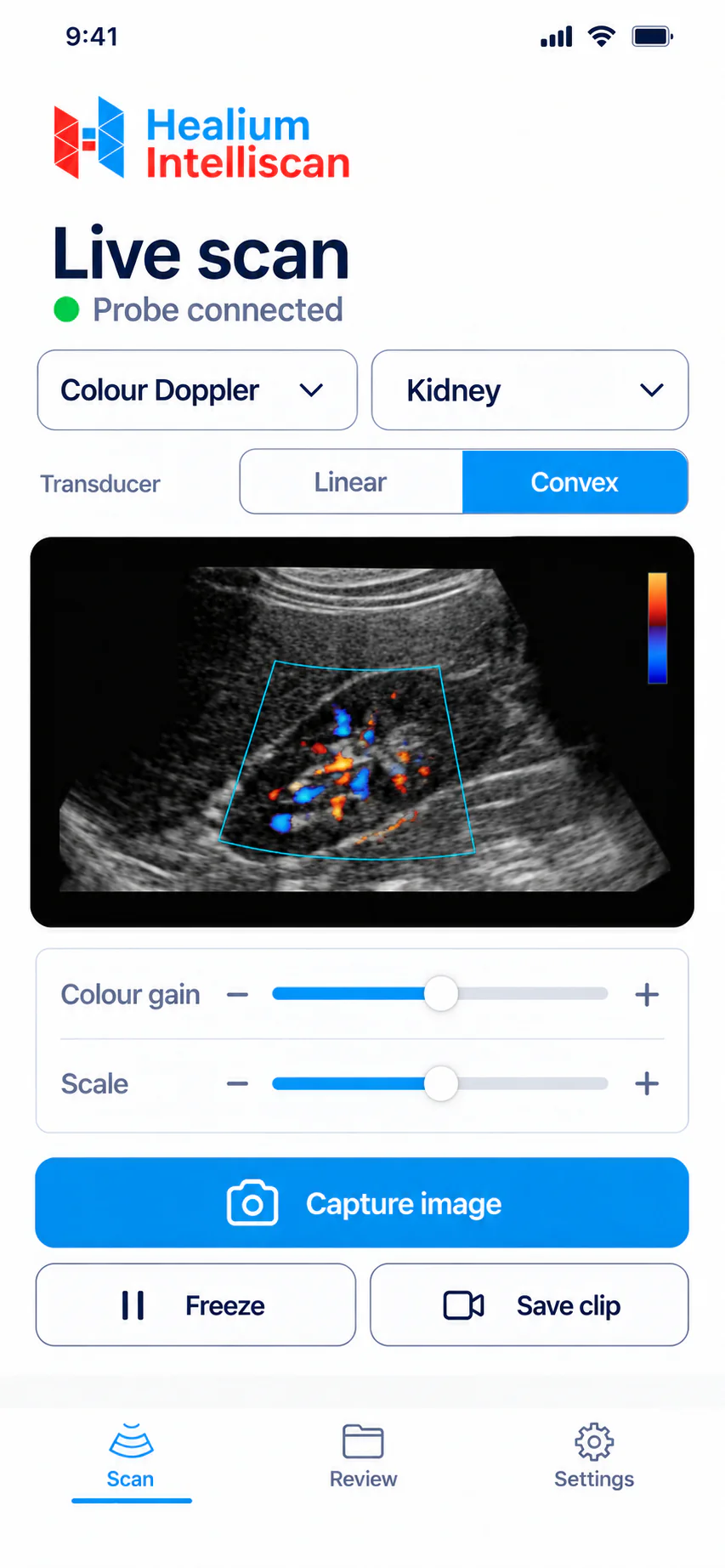

Colour Doppler on a live scanColour Doppler

Colour and Power Doppler.

Flow direction and perfusion, overlaid on the live B-mode image.

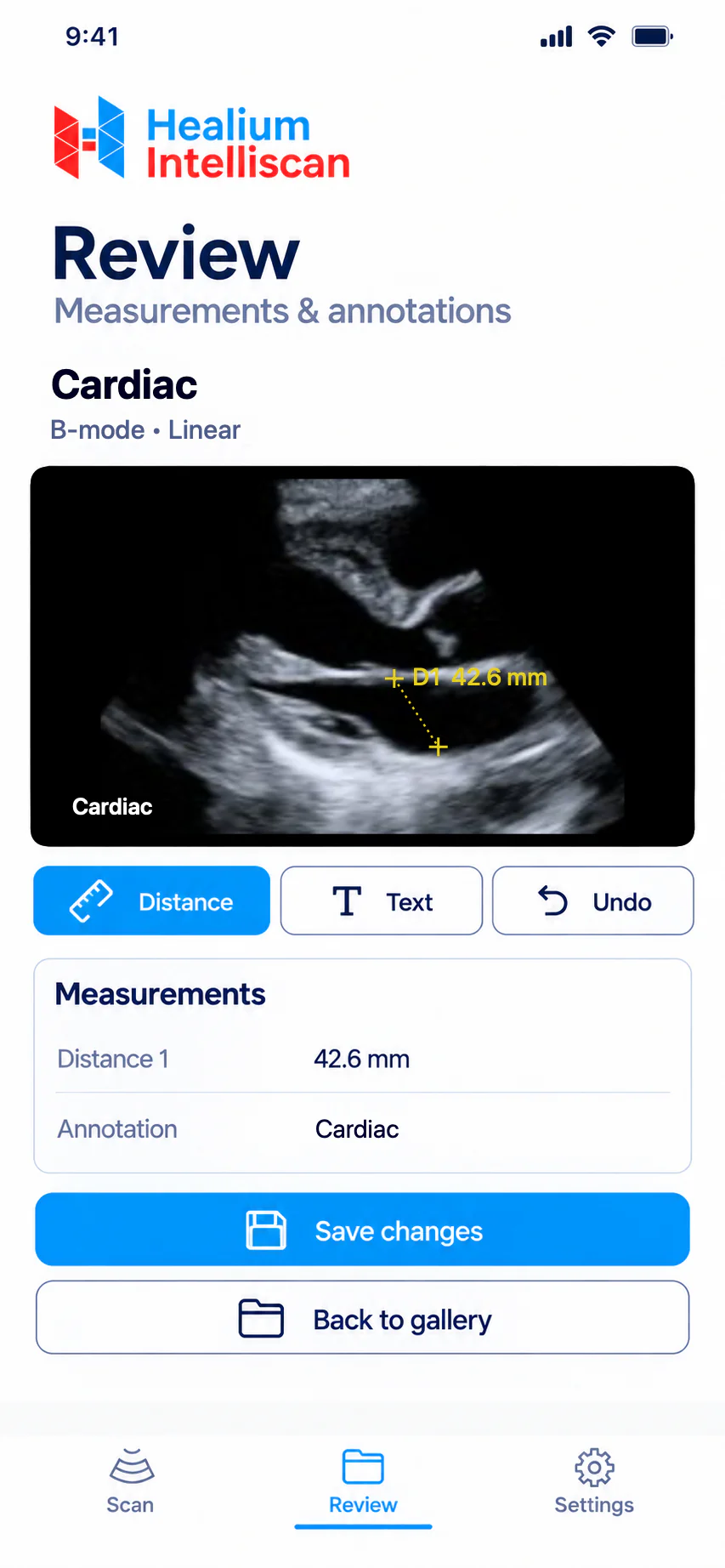

Measurements and annotations on a cardiac frameMeasurements

Measure and annotate.

Calipers, area and labels on a captured frame — saved with the image.

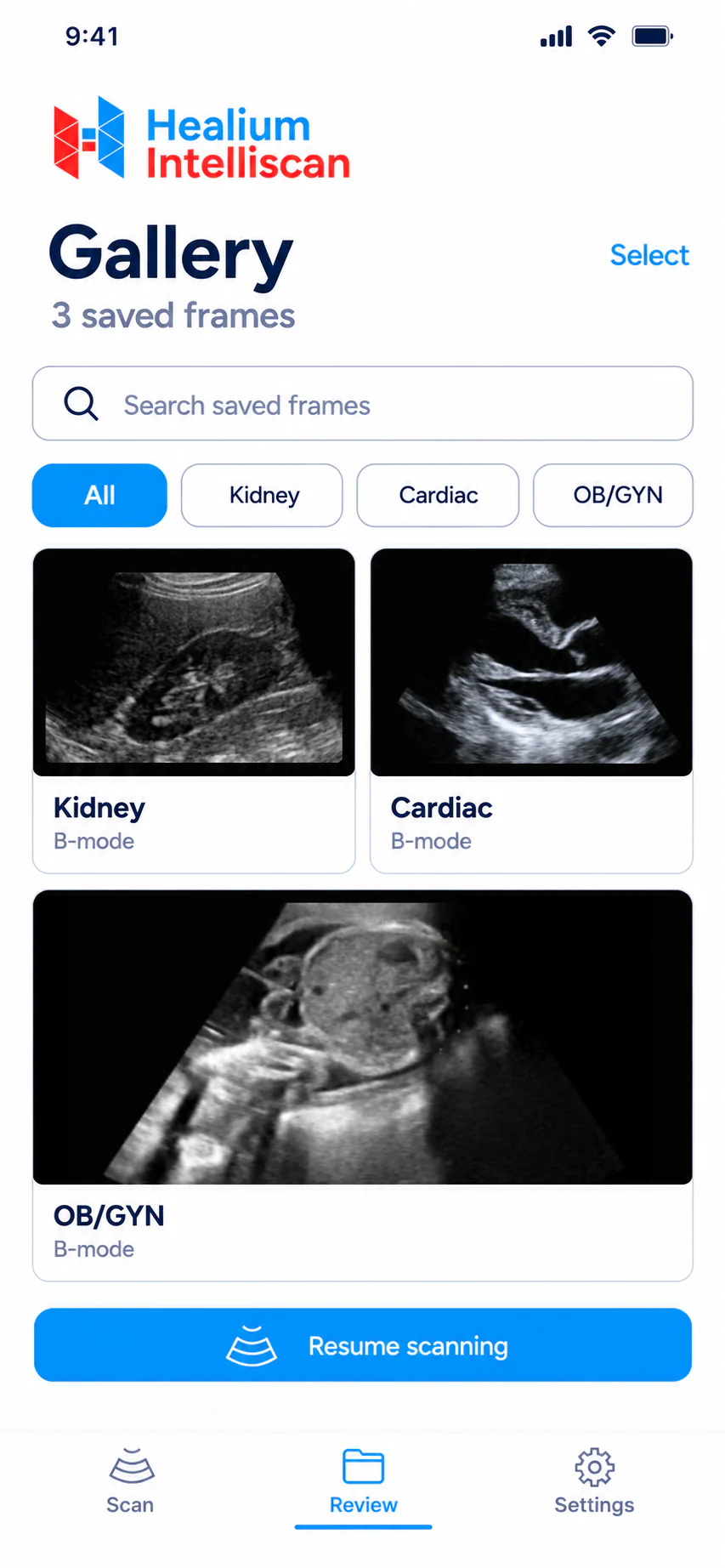

Saved frames and export optionsGallery · export

Review and export.

Frames and clips in one gallery, with DICOM and cloud export.

Also in the app Guided OB Sweep — a guided acquisition mode that lets nurses and midwives trained in the Guided OB Sweep protocol capture an obstetric scan for a doctor to read — currently in field studies. See how it works ›

One app. Every device.

The same live scan on phone, tablet and Windows — same exam, same controls.

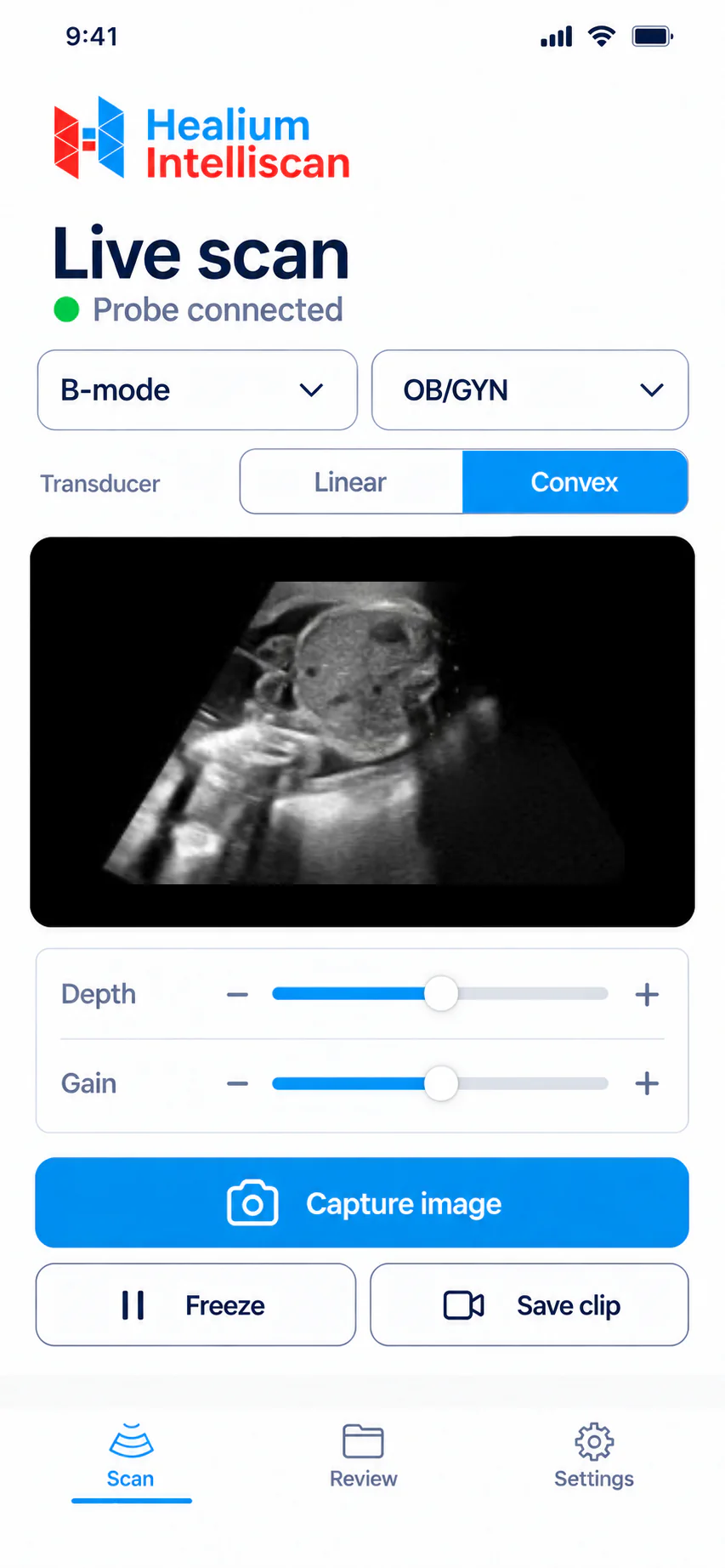

Live scan on a phone — OB/GYN, convex array

Phone

iOS · Android

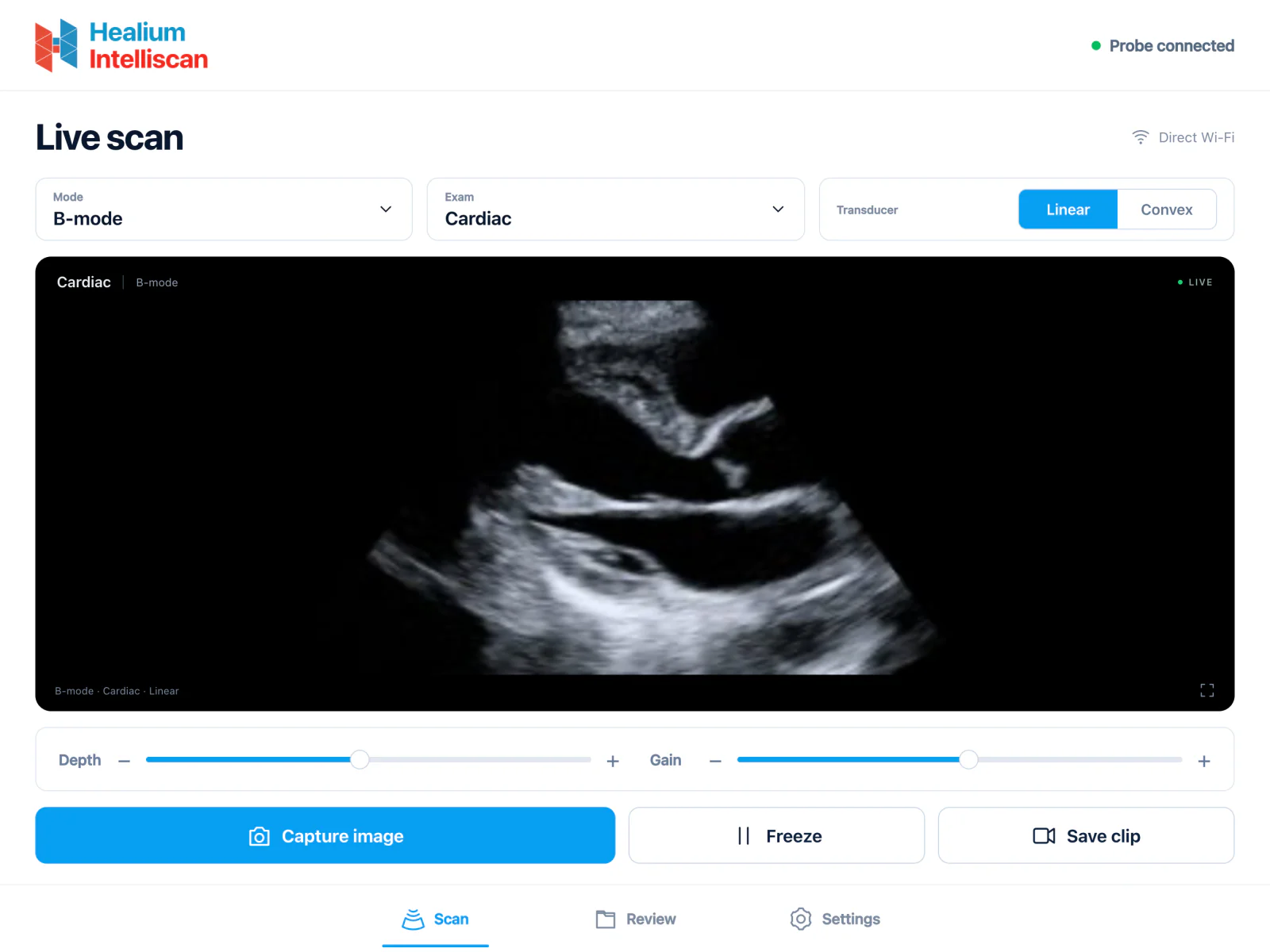

Live scan on a tablet — cardiac, linear array

Tablet

iOS · Android

Healium Intelliscan

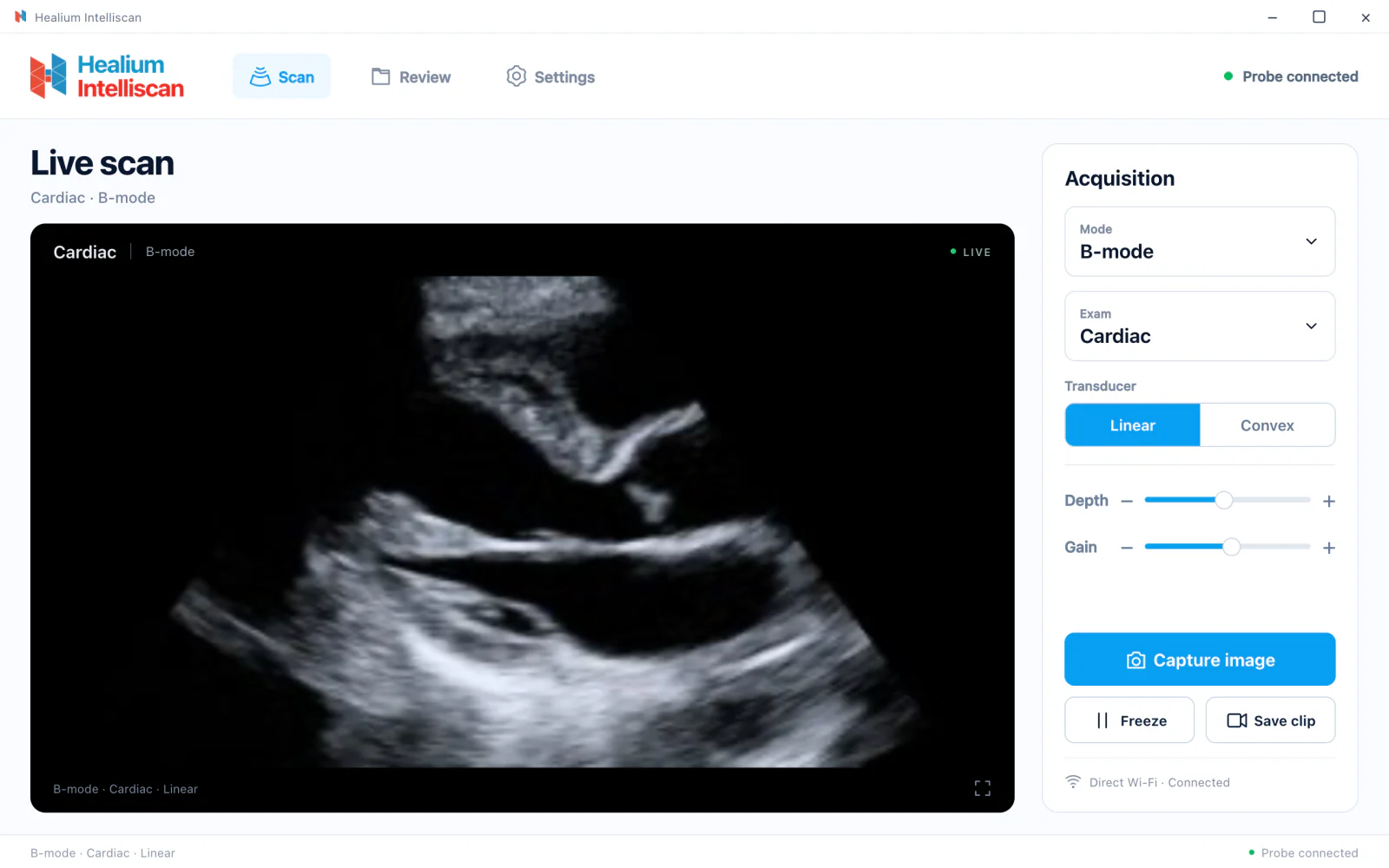

Live scan in the Windows desktop app

Windows

Desktop app

Screens shown are illustrative. Supported devices and operating-system versions are confirmed with your configuration — ask us about your devices.

Tech specs.

Healium Intelliscan LX192LC.

  • 192Physical elements
  • 128 / 64Tx / Rx channels
  • 30 cmMax. imaging depth
  • 278 gWeight
  • IP68Ingress protection
  • 3 hBattery, up to

Two arrays, one probe.

Convex array

Deep views, wide field

Frequency2.0–5.0 MHz
Max. imaging depth30 cm
Presets
Convex
Typical use
Obstetric · Gynaecologic · Abdominal

Linear array

Detail up close, and the heart

Frequency4.2–12.5 MHz
Max. imaging depth12.6 cm
Presets
Linear · Cardiac
Typical use
Cardiac · MSK · Vascular · Small organ

Full specifications.

Product type
Wireless handheld diagnostic ultrasound system
Model
Healium Intelliscan LX192LC
Probe configuration
Dual-head probe, 3-in-1 design
Imaging presets
Convex · Linear · Cardiac
Clinical applications
OB/GYN · Abdominal · Vascular · Musculoskeletal (MSK) · Cardiac All 11 ›
Workflow
Rapid switching between presets for fast diagnostics

Physical elements
192
Transmit / receive
Up to 128 Tx channels · 64 Rx channels
Imaging modes
B-mode · M-mode · Colour Doppler · Power Doppler · PW Doppler
Frequency range, Linear
4.2–12.5 MHz
Frequency range, Convex
2.0–5.0 MHz
Maximum imaging depth
Linear 12.6 cm · Convex 30 cm

Probe to device
Direct Wi‑Fi
Compatible platforms
iOS · Android · Windows
App features
Measurements, annotations, cine review, cloud / DICOM export
Data export
Cloud · DICOM

FDA clearance
510(k) cleared
Intended users
Qualified physicians and trained healthcare professionals
Intended environment
Professional healthcare facilities

Battery runtime
Up to 3 hours
Weight
278 g
Ingress protection
IP68 (IEC 60529)

Specifications subject to change. Battery runtime depends on imaging mode and settings.

Pricing for your setting? Request a quote ›

See the probe with your team.

Thirty minutes on a video call, with a clinician, about your setting.
